Small Engineering

Modern multi-axis CNC sliding head machines with sub-spindle and milling capability, with lights out production to reduce costs.

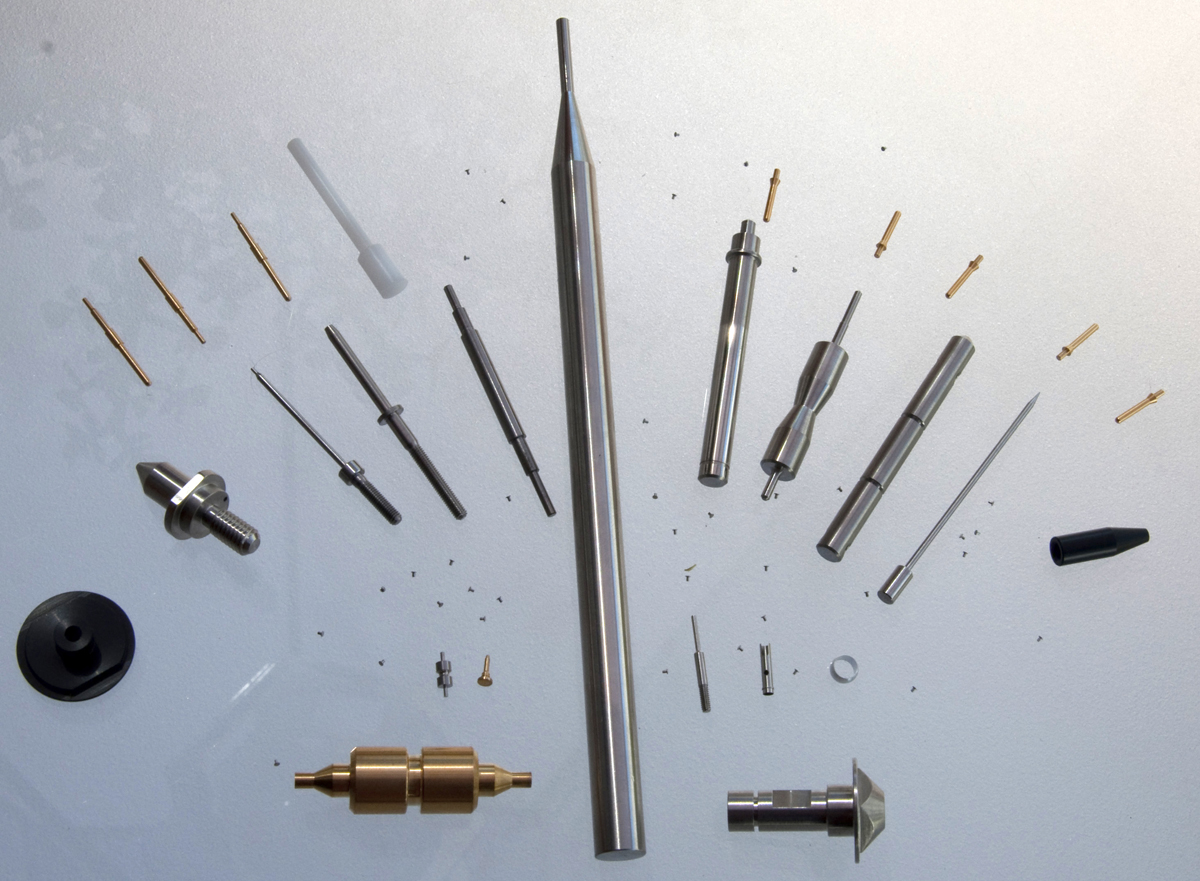

Precision engineering turned parts on a sub-contract basis.
Modern multi-axis CNC sliding head machines with sub-spindle and milling capability, with "lights out" production to reduce costs.
Microscopic parts (<1mm diameter up to 22mm diameter maximum).
Wide range of stainless steel, ferrous, non-ferrous and plastic materials machined to order.
From small prototype batches up to high volume production runs.

MACHINE

CAPACITY

DESCRIPTION

SUITABLE FOR

Star SR10J
Star SR-20R
Star SA-16
Star SB-16E
Star SV12
Star SA16-RC

x1
x2
x1
x1
x1
x1

10mm
22mm
16mm
16mm
12mm
16mm

All CNC Sliding Head
Production
Lathes with magazine bar
feed & sub-spindle, Live
cross-milling & drilling &
tapping.

Prototype and high volume production runs.
Complex slender parts.

Bridgeport Mill

Table size
48" x 9"

Manual milling machine with
Digital Readout, variable
speeds

General milling, prototype components and toolmaking.

Mitutoyo
Shadowgraph
PJ300

Precision optical measuring device,
complete with digital measurement

Measuring work pieces to
a very high standard

Meiji
Stereo Bench Magnifier
EMZ

Zoom Stereo Microscope

Quality Inspection Capabilities
Magnification 7x - 45x

We also have a wide range of NAMAS calibrated and traceable guages for component qualification throughout the manufacturing process.
